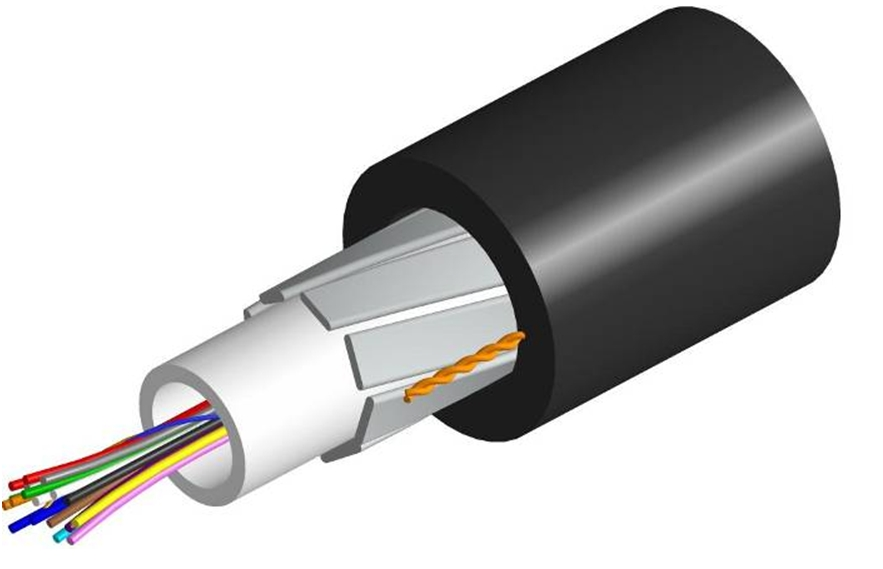

760083329 | Z-024-DN-8W-F12BK/D

24 Fiber Indoor/Outdoor Drop Cable – Z-DN Series | OS2 Singlemode

The Z-DN Series 24 Fiber Indoor/Outdoor Drop Cable is engineered for high-density fiber optic access networks requiring dependable performance across indoor and outdoor environments. Designed with TeraSPEED® OS2 singlemode fibers, the cable supports long-distance, high-bandwidth transmission suitable for modern FTTH, enterprise backbone, and telecom infrastructure deployments.

This cable incorporates a single jacket all-dielectric arid-core design with gel-filled construction, providing excellent moisture resistance and mechanical strength without the need for metallic armor. The Low Smoke Zero Halogen (LSZH) jacket enhances installation safety by reducing smoke emission and corrosive gases during fire conditions.

Its robust yet flexible structure supports aerial lashed, buried, riser, and indoor/outdoor applications, making it an ideal solution for network expansion, distribution networks, and building backbone connectivity.

---

Key Features

• 24 Fiber OS2 Singlemode configuration

• Supports G.652.D & G.657.A1 fiber standards

• TeraSPEED® optimized optical transmission

• Gel-filled arid-core for superior water blocking

• All-dielectric non-armored construction

• LSZH black jacket for enhanced fire safety

• UV-stabilized jacket for outdoor durability

• Feet jacket marking for installation convenience

• Suitable for aerial, buried, riser, and indoor installations

• Dca CPR fire performance compliant

---

Technical Specifications

Product Type: Fiber Drop Cable
Series: Z-DN
Total Fiber Count: 24 Fibers
Fiber Type: OS2 Singlemode (G.652.D / G.657.A1)
Construction: Non-armored, Gel-filled
Jacket Material: Low Smoke Zero Halogen (LSZH)
Jacket Color: Black
Cable Diameter: 8.3 mm

---

Mechanical Performance

• Minimum Bend Radius (Loaded): 125 mm

• Minimum Bend Radius (Unloaded): 83 mm

• Long-Term Tensile Load: 400 N

• Short-Term Tensile Load: 1334 N

• Compression Resistance: 10 N/mm

• Maximum Vertical Rise: 572 m

---

Environmental Performance

• Installation Temperature: −20°C to +60°C

• Operating Temperature: −20°C to +70°C

• Storage Temperature: −20°C to +75°C

• UV Resistant Jacket

• Water Penetration Protection: 24 Hours

---

Fire & Compliance Standards

• CPR EuroClass: Dca

• Smoke Rating: s2

• Droplets Rating: d1

• Acidity Rating: a1

• EN 50575 Compliant (DoP Available)

• RoHS & REACH Compliant

• Manufactured under ISO 9001:2015 Quality Management System
